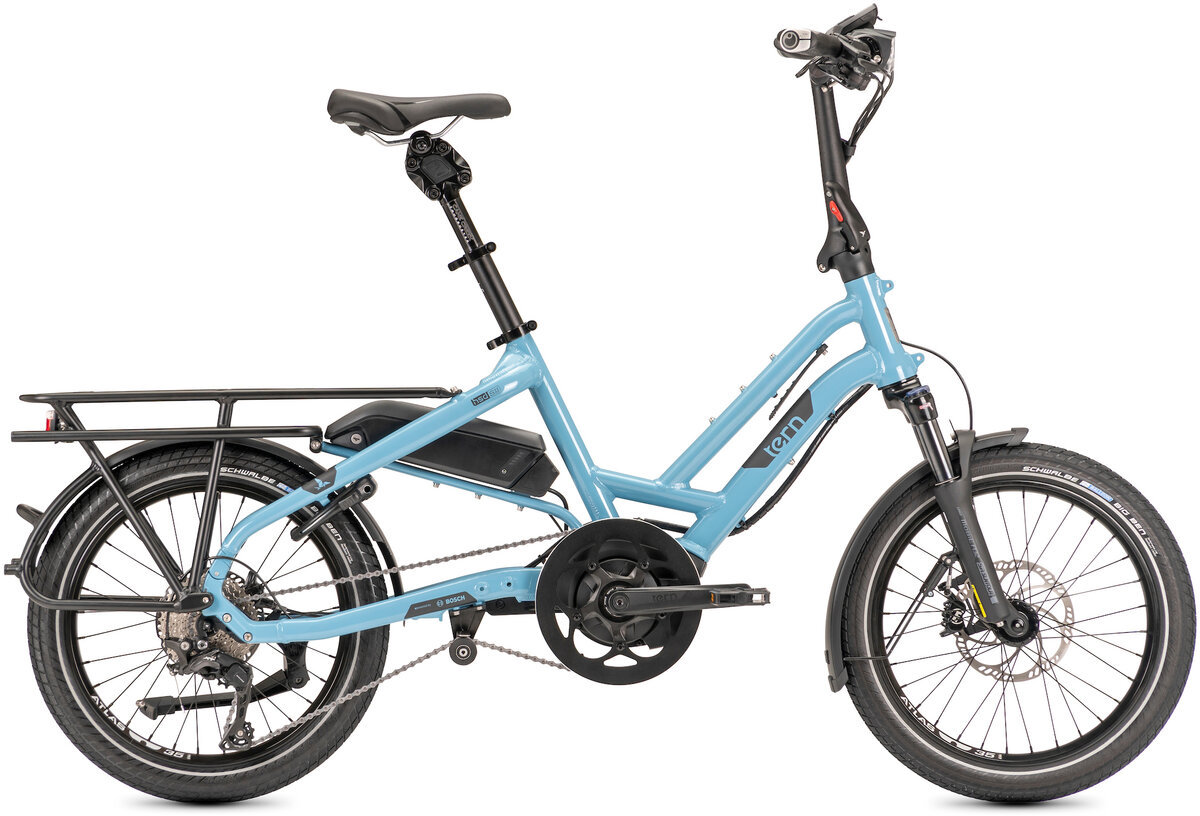

Tern HSD S11 - 2022
This item is currently not available.
Details
- Bosch Performance Line Sport motor, pedal assist up to 28 mph (Class 3)
- Bosch Intuvia display
- 500 Wh battery for a range of up to 74 mi
- Custom Suntour suspension fork
- 11-speed Shimano Deore XT Shadow+ derailleur
- Magura hydraulic disc brakes
- Abus keyed-alike frame lock
- Fits riders from 4'11" to 6'5"
- Fits one Thule Yepp Maxi, Yepp Nexxt Maxi, or Bobike GO Maxi child seat-no adapters needed
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Specs
| Frame | Tern HSD, 6061-AL, patented design, EFBE Tri-Test approved: 170 kg |
|---|---|
| Fork | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE Tri-Test approved: 170 kg |
| Rims | Tern Atlas H, wide 35 mm |
| Hubs | Novatec, sealed cartridge bearing, disc |
| Spokes | Stainless steel, double-butted |
| Tires | Schwalbe Big Ben, 55-406, RaceGuard puncture protection, ECE-R75 ebike certification |
| Bottom Bracket | Motor integrated |
| Shifters | Shimano Deore XT, 1 x 11 spd |
| Rear Derailleur | Shimano Deore XT |
| Cassette/Freewheel | 11-36T, 11 spd |
| Chain | KMC 11 spd, EPT corrosion resistant coating |
| Brakes | Magura MT5, hydraulic disc |
| Rotors | 180/160mm |
| Brake Levers | Magura, hydraulic |
| Handlebars | Tern Sweep, 6061-AL, Tern Andros adapted |
| Tape/Grips | Ergon |
| Stem | Tern Andros, adjustable, forged construction, patented technology |
| Headset | Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated |
| Seatpost | Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm |
| Saddle | Tern HSD |
| Pedals | Urban with non-slip surface, sealed bearings |
| Accessories & Extras | BELL: Aluminum KICKSTAND: Ursus, rear mount LUGGAGE SOCKET: Combo Mount FRONT LIGHT: Tern Valo Direct, 190 lumens REAR LIGHT: Herrmans H-Trace, for eBike FENDERS: SKS, stainless hardware RACK(S): Atlas H rack, Atlas Rack Mount, 6 point mounting ACCESSORY: ABUS 5650L, keyed-alike with Bosch battery |
| Motor | Bosch Performance Sport, 300% Assist, 65 Nm Torque, max speed 28 mph (US) |
| Battery | Bosch PowerPack 500 |
| Controller/Display | Bosch Intuvia, 4 mode selectable, walk assist |
| Charger | Bosch Standard Charger |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Tundra / One Size | 812741027105 | 31755 |
