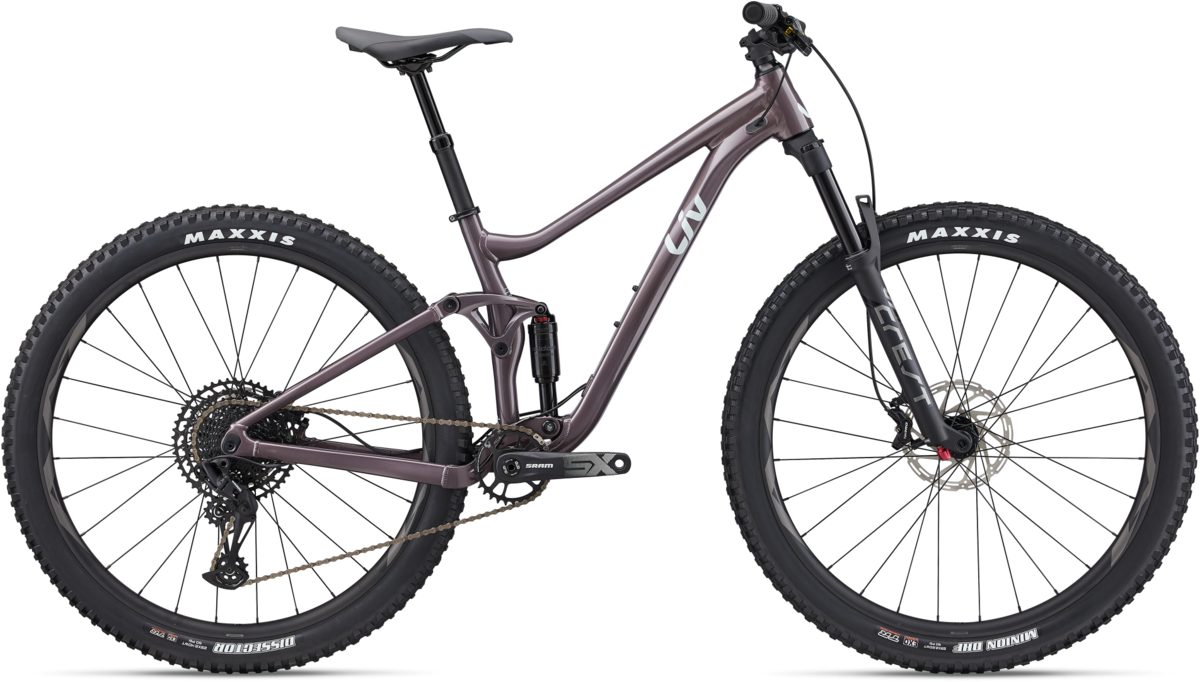

Liv Embolden 1

Liv Embolden 1
$2,150.00
Color: Charcoal Plum
Size: Select size
Wheel Size: Select wheel size
Please select options Unavailable
.Thank you for using Bicycles NYC for your cycling needs. We will contact you when your purchase is available for pick-up. Call 212-794-2929 or email Info@BicyclesNYC.com for additional details. REMINDER: Bicycles sales will incur a surcharge associated with a wide range of pandemic and warranty related expenses. The surcharge will appear as a "shipping charge" at checkout. Children's Bikes - $35. Adult Bikes - $50, and all Electric Bikes - $150.

Details

Nothing Is Off-Limits To The Embolden, A Trail Bike Designed To Conquer Tricky Climbs, Rowdy Descents, And Chunky Rock Gardens With Confidence.

Key Performance Factors:

- Custom Frame Design
Women's custom-designed geometry paired with 27.5 or 29-inch wheel size gives the rider the best fit and bike handling.

- Trail Capability
ALUXX-Grade Aluminum frame, tubeless wheelset, dropper seatpost, Liv Sylvia trail saddle, and a 1x drivetrain allow you to tackle new technical terrain with confidence.

- Flexpoint Suspension
The 120mm of FlexPoint Suspension provides an effective, lightweight, and durable suspension system so you have increased control while riding over rooty and rocky terrain.

Techs and Features:

- ALUXX Aluminum Technology
This Performance level frame material features 6061 alloys with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.

- Overdrive
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

- Powercore
A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

-Tubeless System
Engineered with proprietary Dynamic Balanced Lacing technology, this tubeless-ready composite WheelSystem delivers superior efficiency, pinpoint control, and comfort.

Wheel size:
Sizes X-Small – Small: 27.5-inch
Sizes Small – Large: 29-inch

Sizes:
FRAME SIZEX-SmallSmallSmallMediumLarge
A - SEAT TUBE LENGTH (mm) 380 406 405 420 440
B - SEAT TUBE ANGLE 74.0° 74.0° 76.0° 76.0° 76.0°
C - TOP TUBE LENGTH (mm) 565 580 565 585 605
D - HEAD TUBE LENGTH (mm) 95 100 105 115 125
E - HEAD TUBE ANGLE 67.5° 67.5° 67.0° 67.0° 67.0°
F - FORK RAKE (mm) 43 43 51 51 51
G - TRAIL (mm) 103.6 103.6 105.3 105.3 105.3
H - WHEELBASE (mm) 1109 1125 1147 1169 1190
I - CHAIN STAY LENGTH (mm) 435 435 438 438 438
J - BOTTOM BRACKET DROP (mm) 20 20 40 40 40
K - STACK (mm) 560 565 614 623 632
L - REACH (mm) 404 418 412 430 447
M - STAND OVER HEIGHT (mm) 690 705 712 734 755
N - HANDLEBAR WIDTH (mm) 750 750 740 760 780
O - STEM LENGTH (mm) 40 40 40 50 50
P - CRANK LENGTH (mm) 165 170 170 170 170
Q - WHEEL SIZE 27.5" 27.5" 29" 29" 29"
Sizes:
Frame SizeRider Height (cm)Rider Height (in)
X-Small 150 - 160 4'11" - 5'3"
Small 158 - 169 5'2" - 5'7"
Medium 164 - 175 5'5" - 5'9"
Large 170 - 181 5'7" - 5'11"

Specs

Frame ALUXX-grade aluminum, 120mm FlexPoint Suspension
Fork Giant Crest 34 SL RCL, 140mm, Boost 15x110, 44mm offset
Rear Shock Suntour Raidon R, 184x44, custom tuned for Liv
Rims 27.5": Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width
29": Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width
Hubs Alloy
Spokes Sapim
Tires 27.5":
Front: Maxxis Minion DHF 27.5x2.6, EXO, TR, tubeless
Rear: Maxxis Dissector 27.5x2.6, EXO, TR, tubeless
29":
Front: Maxxis Minion DHF 29x2.5 WT, EXO, TR, tubeless
Rear: Maxxis Dissector 29x2.4 WT, EXO, TR, tubeless
Bottom Bracket SRAM DUB, press fit
Crankset SRAM SX Eagle DUB, 30t 27.5": XS: 165mm, S: 170mm, M: 170mm 29": S: 170mm, M: 170mm, L: 170mm
Shifters SRAM SX Eagle, 1x12
Rear Derailleur SRAM SX Eagle
Cassette/Freewheel SRAM SX Eagle, 11x50
Chain SRAM SX Eagle
Brakes Shimano MT-420, hydraulic
Rotors Shimano RT-26 rotors 180mm
Brake Levers Shimano BL-MT401
Handlebars Giant Contact TR35, 20mm rise, alloy 27.5": XS: 730mm, S: 750mm, M: 750mm 29": S: 750mm, M: 750mm, L: 780mm
Tape/Grips Giant Sole-O
Stem Giant Contact, 35mm 27.5": XS: 40mm, S: 50mm, M: 50mm 29": S: 50mm, M: 50mm, L: 60mm
Seatpost Giant Contact Switch dropper, remote 27.5": XS: 75mm travel / 30.9 x 295mm S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm 29": S: 100mm travel / 30.9 x 345mm M: 125mm travel / 30.9 x 395mm L: 125mm travel / 30.9 x 345mm
Saddle Liv Sylvia
Pedals Platform
Accessories & Extras Tubeless prepared

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Charcoal Plum / Small / 27.5 04712878964921 1033001104
Charcoal Plum / Small / 29 04712878965867 1033003104
Charcoal Plum / Large / 29 04712878965881 1033003107
